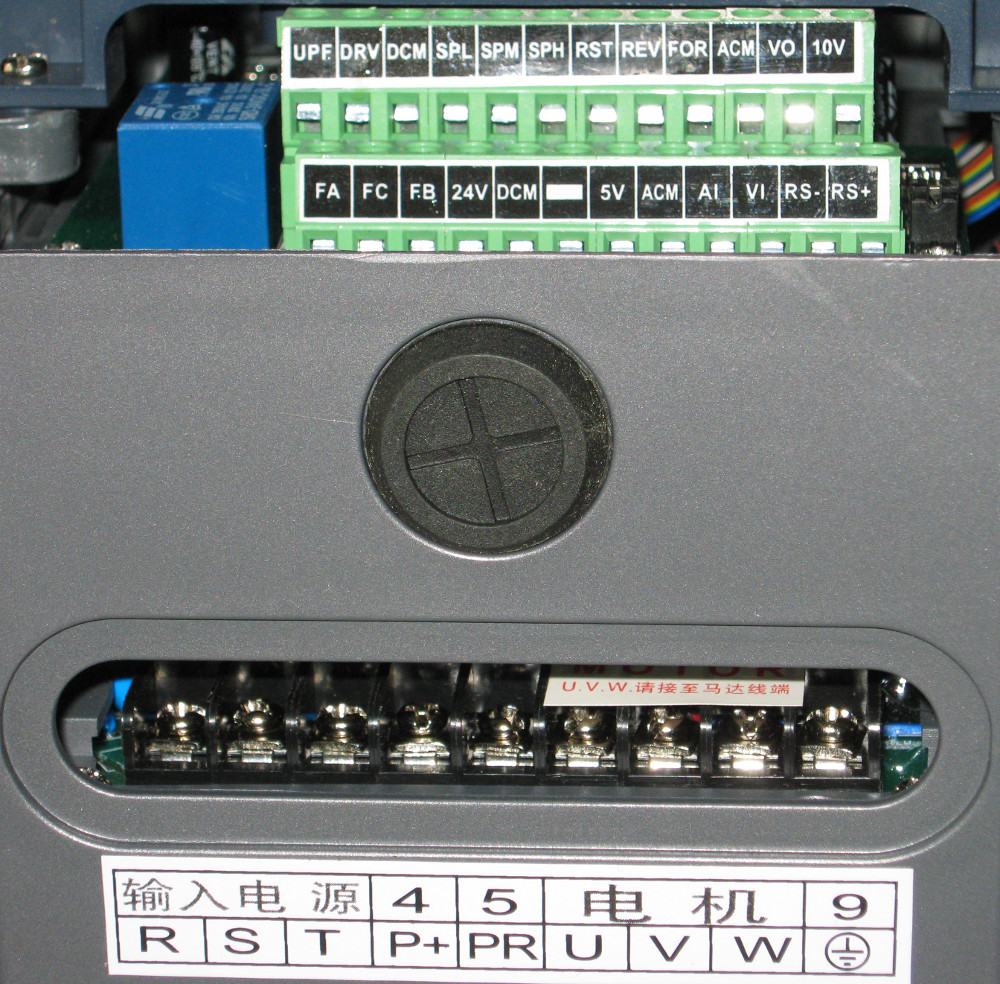

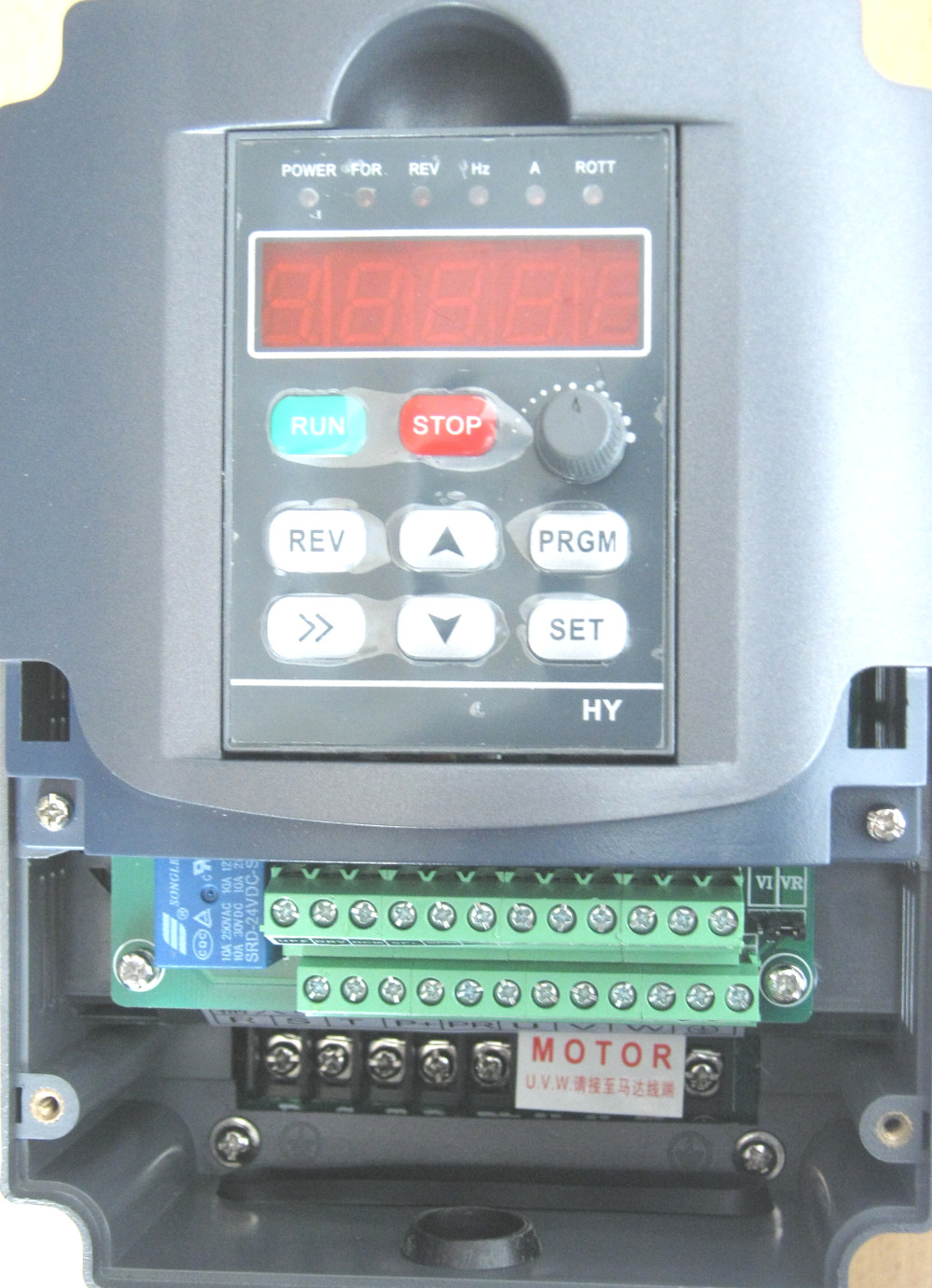

Silnoprúdová časť: | |
R, S, T | prívod 230V na ľubovoľné dva vodiče |
E, (9) | ochranný vodič |
U, V, W | vývody na motor |
P, N (P+,PR) | brzdiaci odpor, pre 2,2kW 70ohm, 300W |
Slaboprúdová časť: | |
+5V | 5V, 1A |
+24V | 24V, 1A |
10V | zdroj riadiaceho napätia |
VI | Vstup pre riadenie otáčok napätím, 0-10V |
AI | Vstup pre riadenie otáčok prúdom, 4-20mA |
ACM (GND) | Signálová zem pre riadenie otáčok |
FB-FC, FA | Programovateľné výstupné relé, FB-FC v kľude spojené, FA 3A/250VAC, FB 3A/30VDC |
DCM (GND), UPF, DRV | Programovateľné opticky riadené spínače proti DCM, 24V/100mA |
V0, ACM (GND) | Výstup pre externý ukazovateľ frekvencie 0-10V/10mA |
FOR | Programovateľný vstup, default - točenie vpred |
REV | Programovateľný vstup, default - točenie reverzne |
RST | Programovateľný vstup, default - reset |
SPH | Programovateľný vstup, default - vysoké otáčky - spindle high |
SPM | Programovateľný vstup, default - stredné otáčky - spindle middle |
SPL | Programovateľný vstup, default - nízke otáčky - spindle low |
DCM (GND) | Zem pre vstupy FOR, REV, RST, SPH, SPM, SPL |
RS+, RS- | Prúdová slučka |
Switch VI VR | Prepína na externý potenciometer poloha 1-2, default 2-3 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD000 | Parameter Lock | 0: invalid 1: Valid | 0 | 0 |
PD001 | Zdroj príkazu RUN | 0: panel 1: vstup 2: comport | 0 | 1 |
PD002 | Riadenie otáčok | 0: panel 1: vstup 2: comport | 0 | 1 |
PD003 | Main Frekvency | 0.00 - 400.00 Hz | - | 400.00 |
PD004 | Base Frekvency | 0.00 - 400.00 Hz | 50 | 400.00 |
PD005 | Maximálna pracovná Frekvencia | 50.00 - 400.00 Hz | 50 | 400.00 |
PD006 | Intermediate Frekvency | 0.01 - 400.00 Hz | 2.5/3.0 | 399.00 |
PD007 | Minimálna Frekvencia | 0.01 - 20.00 Hz | 0.5 | 000.01 |
PD008 | Max Voltage | 0.1 V --- | 220/380 | 220.0 |
PD009 | ??? | 0.1 V --- | 220/380 | 219.0 |
PD010 | Min Voltage | 0.1 - 50.0 V | - | 19.0 |
PD011 | Frekvency Lower Limit | 0.00 - 400.0 Hz | 0 | 000.00 |
PD012 | Reserved | null | null | |
PD013 | Parameter reset | 8: obnoví továrenské nastavenie | 00 | 00 |
PD014 | Accel. Time 1 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0004.0 |
PD015 | Decel. Time 1 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0004.0 |
PD016 | Accel. Time 2 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0004.0 |
PD017 | Decel. Time 2 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0004.0 |
PD018 | Accel. Time 3 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0020.0 |
PD019 | Decel. Time 3 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0040.0 |
PD020 | Accel. Time 4 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0080.0 |
PD021 | Decel. Time 4 | 0.1 - 6500.0 S-Curve ~ PD043/2 | 0.1 | 0080.0 |
PD022 | Reserved | null | 0 | |
PD023 | Rev. Rotation select | 0: Reverzné otáčky zakázané 1:Reverzné otáčky povolené | 1 | 1 |
PD024 | STOP key select | 0: STOP zakázané 1: STOP povolené | 1 | 1 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD025 | Śtarting mode | 0: Start from Starting Frekvency 1: Frekvency track start | 0 | 0 |
PD026 | Stopping mode | 0: Decelerating stop 1: Coasting stop | 0 | 0 |
PD027 | Starting frekvency | 0.1 - 10.0 Hz | 0.5 | 000.50 |
PD028 | Stopping frekvency | 0.1 - 10.0 Hz | 0.5 | 000.50 |
PD029 | Braking time at start | 0 - 25.0 | 0.0 | 00.0 |
PD030 | Braking time at stop | 0 - 25.0 | 0.0 | 00.0 |
PD031 | DC Braking level | 0.0 - 20.0% | 2.0 | 02.0 |
PD032 | Frekvency track time | 0.1 - 20.0S | 5.0 | 05.0 |
PD033 | Current level for frekvency track | 0.0 - 200.0S | 150.0 | 150 |
PD034 | Voltage rise time during frakvency track | 0.1 - 10.0S | 0.5 | 00.5 |
PD035 | Reserved | null | null | |
PD036 | Reserved | null | null | |
PD037 | Reserved | null | null | |
PD038 | Reserved | null | null | |
PD039 | Reserved | null | null | |
PD040 | Reserved | null | null | |
PD041 | Carrier frekvency | 0 - 15 | 5 | 03 |
PD042 | Jogging frekvency | 0.00 - 400.0 Hz | 5 | 005.00 |
PD043 | S-Curve Time | 0 - 6500.0S | 0.0 | 0000.0 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD044 | FOR (D1) | 0: Invalid; 1: RUN; 2: FOR Rotation; 3: REV Rotation; 4: Stop; 5: FOR/REV; 6: Jog; 7: Jog FOR rotation; 8: Jog REV rotation; 9: Timer1; 10: Timer2; 11: Reserved; 12: Overhead of heat sink or motor; 13: Emergency STOP; 14: Reset; 15-16: Reserved; 17: Ramp select1; 18: Ramp select2; 19: Multi speed1; 20: Multi speed2; 21: Multi speed3; 22: High speed; 23: Middle speed; 24: Low speed; 25: PID start; 26: Reserved; 27: UP function Counter; 28: DOWN function; 29: Drawing; 30: Reserved; 31: Counter; 32: Counter reset; | 02 | 01 |
PD045 | REV (D2) | 03 | 05 | |
PD046 | RST (D3) | 14 | 04 | |
PD047 | SPH (D4) | 22 | 07 | |
PD048 | SPL (D5) | 24 | 19 | |
PD049 | SPM (D6) | 23 | 20 | |
PD050 | Y1 Output | 0: Invalid; 1: RUN; 2: Zero Speed; 3: Fault indication 4: Braking indication; 5: Set frekvency reach; 6: In Accel; 7: In Decel; 8: Arbitrary frekvency 1 reach; 9: Arbitrary frekvency 2 reach, 10: Motor overload alarm; 11: Overtorque alarm; 12: Inverter overload alarm; 13: Counterreach; 14-16: Reserved; 17: Low voltage alarm; 18: Single stage end indication; 19: Process end indication; 20-26: Reserved; 27: Drawing reach; 28: PID lower limit alarm; 29: PID upper limit alarm; 30: Reserved; 31: Braking resistor active; 32: Fan active; | 01 | 01 |
PD051 | Y2 Output | 05 | 03 | |
PD052 | Terminals FA, FB, FC | 03 | 03 | |
PD053 | Terminal of KA, KB | 03 | 03 | |
PD054 | VO Output | Output of digital frekvency signals 0-7 | 0 | 0 |
PD055 | VO analog output gain | 0.0 - 100.0% | 100 | 100 |
PD056 | Skip frekvency1 | 0.00 - 400.0 Hz | 0.00 | 000.00 |
PD057 | Skip frekvency2 | 0.00 - 400.0 Hz | 0.00 | 000.00 |
PD058 | Skip frekvency3 | 0.00 - 400.0 Hz | 0.00 | 000.00 |
PD059 | Skip frekvency range | 0.10 - 10.0 | 0.50 | 000.50 |
PD060 | Uniform frekvency1 | 0.00 - 400.0 Hz | 0.00 | 000.00 |
PD061 | Uniform frekvency2 | 0.00 - 400.0 Hz | 0.00 | 000.00 |
PD062 | Uniform frekvency range | 0.10 - 10.0 | 0.50 | 000.50 |
PD063 | Timer 1 time | 0 - 10.0 | 0.1 | 00.1 |
PD064 | Timer 2 time | 0 - 100 | 1 | 001 |
PD065 | Counting value set | 00 - 65500 | 00 | 00000 |
PD066 | Intermediate Counter | 0 - 65500 | 0 | 00000 |
PD067 | Reserved | null | null | |
PD068 | Reserved | null | null | |
PD069 | Reserved | null | null | |
PD070 | Analog Input | 0: 0-10V; 1: 0-5V; 2: 0-20mA; 3: 4-20mA 4: 0-10V; stacked 4-20mA Exterior pulse of input | 0 | 0 |
PD071 | Analog filtering Constant | 0-50 | 20 | 20 |
PD072 | Higher Analog Frekvency | 0.00 - 400.00 Hz | 50.00 | 400.00 |
PD073 | Lower Analog Frekvency | 0.00 - 400.00 Hz | 0 | 000.00 |
PD074 | Bias direction at higher Frekvency | 0: Positive direction; 1: Negative direction; | 0 | 0 |
PD075 | Bias direction at lower Frekvency | 0: Positive direction; 1: Negative direction; | 0 | 0 |
PD076 | Analog Negative Bias Reverse | 0: Not allowable; 1: Allowable; | 0 | 0 |
PD077 | Up/Down Function | 0: Not memorized; 1: Memorized; | 0 | 0 |
PD078 | Up/Down Speed | 0: 0.01 Hz; 1: 0.1 Hz; | 0 | 0 |
PD079 | Reserved | null | 0.01 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD080 | PLC Operation | 0: Normal RUN; 1: Internal control 16-speed; 2: External control 4-speed; 3: External control 8-speed; 4: Drawning; 5: Disturbance; | 0 | 0 |
PD081 | Internal Control Multi-speeds Operation | 0: Stop after running for one cycle; 1: Cycling run; 2: Auto stop after running for one cycle ( stop for intervention ) 3: Auto run and Cycling; ( stop Dfor intervention); | 0 | 0 |
PD082 | PLC Before 8 speeds Running Direction | 0-255 (0: For; 1: Rev) | 0 | 000 |
PD083 | PLC After 8 speeds Running Direction | 0-255 (0: For; 1: Rev) | 0 | 000 |
PD084 | Before 8 speeds PLC Ramp Time | 0-65535 | 0 | 00000 |
PD085 | After 8 speeds PLC Ramp Time | 0-65535 | 0 | 00000 |
PD086 | Frekvency 2 | 0.00 - 400.00 Hz | 15.00 | 015.00 |
PD087 | Frekvency 3 | 0.00 - 400.00 Hz | 20.00 | 020.00 |
PD088 | Frekvency 4 | 0.00 - 400.00 Hz | 25.00 | 025.00 |
PD089 | Frekvency 5 | 0.00 - 400.00 Hz | 30.00 | 030.00 |
PD090 | Frekvency 6 | 0.00 - 400.00 Hz | 35.00 | 035.00 |
PD091 | Frekvency 7 | 0.00 - 400.00 Hz | 40.00 | 040.00 |
PD092 | Frekvency 8 | 0.00 - 400.00 Hz | 0.5 | 000.50 |
PD093 | Frekvency 9 | 0.00 - 400.00 Hz | 10.00 | 010.00 |
PD094 | Frekvency 10 | 0.00 - 400.00 Hz | 15.00 | 015.00 |
PD095 | Frekvency 11 | 0.00 - 400.00 Hz | 20.00 | 020.00 |
PD096 | Frekvency 12 | 0.00 - 400.00 Hz | 25.00 | 025.00 |
PD097 | Frekvency 13 | 0.00 - 400.00 Hz | 30.00 | 030.00 |
PD098 | Frekvency 14 | 0.00 - 400.00 Hz | 35.00 | 035.00 |
PD099 | Frekvency 15 | 0.00 - 400.00 Hz | 40.00 | 040.00 |
PD100 | Frekvency 16 | 0.00 - 400.00 Hz | 45.00 | 045.00 |
PD101 | Timer 1 | 0.0 - 6500.0S | 10.0 | 0010.0 |
PD102 | Timer 2 | 0.0 - 6500.0S | 10.0 | 0010.0 |
PD103 | Timer 3 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD104 | Timer 4 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD105 | Timer 5 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD106 | Timer 6 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD107 | Timer 7 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD108 | Timer 8 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD109 | Timer 9 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD110 | Timer 10 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD111 | Timer 11 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD112 | Timer 12 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD113 | Timer 13 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD114 | Timer 14 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD115 | Timer 15 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD116 | Timer 16 | 0.0 - 6500.0S | 0.0 | 0000.0 |
PD117 | Auto PLC Memory Function | 0 - 1 | 0 | 0 |
PD118 | Over-voltage Stall Prevention | 0 - 1 | 1 | 1 |
PD119 | Stall Prevention Level at Accel. | 0 - 200 | 150 | 150 |
PD120 | Stall Prevention Level at Constant speed | 0 - 200 | 0 | 000 |
PD121 | The Decel Time of Stall Prevention Level at Constant speed | 0.1 - 25.5 | 5 | 05.0 |
PD122 | Stall Prevention Level at Decel. | 0 - 200 | 150 | null |
PD123 | Over-torque Detect Mode | 0 - 3 | 0 | 0 |
PD124 | Over-torque Detect Level | 0 - 200 | 0 | 000 |
PD125 | Over-torque Detect Time | 0.1 - 20.0 | 1.0 | 01.0 |
PD126 | Pulse Counter Memory | 0 - 1 | 0 | 0 |
PD127 | Reserved | null | null | |
PD128 | Reserved | null | null | |
PD129 | Reserved | null | null |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD130 | Number of Auxiliary Pump | 0 - 2 | 0 | 0 |
PD131 | Continuous Operating Time of Aux. Pumps | 1 - 9000Mim | 60 | 0060 |
PD132 | Interlocking time of Aux. pumps | 1 - 250s | 5s | 005 |
PD133 | High Speed Running Time | 1 - 250s | 60s | 060 |
PD134 | Low level Running Time | 1 - 250s | 60s | 060 |
PD135 | Stopping Voltage Level | 1 - 150% | 95% | 095 |
PD136 | Lasting Time of Stopping Voltage Level | 1 - 250s | 30s | 030 |
PD137 | Wakeup Level | 1 - 150% | 80% | 080 |
PD138 | Sleep Frekvency | 0.00 - 400.00 | 20.00 | 020.00 |
PD139 | Lasting Time of Sllep Frekvency | 1 - 250s | 20s | 020 |
PD140 | Reserved | null | null |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD141 | Rated Motor Voltage | Set according to Motor nameplate | * | 220.0 |
PD142 | Rated Motor Current | Set according to Motor nameplate | * | 011.0 |
PD143 | Motor pole number | 0210 | 04 | 04 |
PD144 | Rated Motor Revolution | 24000 | 1440 | 3000 |
PD145 | Auto Torque Compensation | 2.0 - 10.0 | 2.0 | 02.0 |
PD146 | Motor no-load current | 0100 | 40 | 040 |
PD147 | Motor slip compensation | 0.0 - 100 | 0.0 | 0020 |
PD148 | Reserved | null | null | |
PD149 | Reserved | null | null | |
PD150 | Auto Voltage Regulation | 0 - 1 | 1 | 1 |
PD151 | Auto Energy Saving | 0 - 20 | 0 | 00.0 |
PD152 | Fault Restart Time | 0.2 - 25 | 1 | 01.0 |
PD153 | Restart after Instantaneous Stop | 0: Invalid; 1: Frequency track | 0 | 0 |
PD154 | Allowable Power - Breakdown Time | 0.1 - 5.0S | 0.5 | 00.5 |
PD155 | Number of Abnormal Restart | 0 - 10 | 00 | 00 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD156 | Proportional Constant (P) | 0.0 - 1000.00% | 100% | 0100.0 |
PD157 | Integral Time (I) | 0.1 - 3600.00S | 5.0 | 0005.0 |
PD158 | Diferential Time (D) | 0.01 - 10.00S | 0 | 00.00 |
PD159 | Target Value | 0.0 - 100.0% | 0 | 000.0 |
PD160 | Target Value Select | 0 - set by the operator; 1 - set by the external terminals (0-10V) preset | 0 | 0 |
PD161 | PID Upper limit | 0 - 100% | 100 | 100 |
PD162 | PID Lower limit | 0 - 100% | 0 | 000 |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD163 | Communication adresses | 0 - 250 | 0 | 000 |
PD164 | Communication Baud Rate | 0 - 3 | 1 | 0 |
PD165 | Communication Data Method | 0 - 5 | 0 | 0 |
PD166 | Reserved | 0 | ||
PD167 | Reserved | 0 | ||
PD168 | Reserved | 0 | ||
PD169 | Reserved | null |
Register | Význam | Dostupné hodnoty | Default | Použité |
PD170 | Display Items | 0 - 5 | 0 | 07 |
PD171 | Display Items Open | 0 - 15 | 0 | 7 |
PD172 | Fault Clear | 00 10 (01 for fault clear) | * | 00 |
PD173 | Voltage Rating of Inverter | Set according to the model | * | 255.0 |
PD174 | Rated Current of Inverter | Set according to the model | * | 011.0 |
PD175 | Inverter Model | 0 | ||
PD176 | Inverter Frekvencz Standard | 0: 50Hz 1: 60Hz | 0 | 0 |
PD177 | Fault Record 1 | * | * | LU|
PD178 | Fault Record 2 | * | * | LU|
PD179 | Fault Record 3 | * | * | ----|
PD180 | Fault Record 4 | * | * | ----|
PD181 | Software Version | * | * | u-1.00|
PD182 | Manufacture date | Year; Month; Week | * | 20720 |
PD183 | Serial number | * | 65535 | |
PD184 | Reserved | 20 | ||
PD185 | Reserved | 00 | ||
PD186 | Reserved | 0 | ||
PD187 | Reserved | null | ||
PD188 | Reserved | null | ||
PD189 | Reserved | null | ||
PD190 | Reserved | null | ||
PD191 | Reserved | null | ||
PD192 | Reserved | null | ||
PD193 | Reserved | null | ||
PD194 | Reserved | null | ||
PD195 | Reserved | null | ||
PD196 | Reserved | null | ||
PD197 | Reserved | null | ||
PD198 | Reserved | null | ||
PD199 | Reserved | null | ||
PD200 | Reserved | 00000 | ||
PD201 | Reserved | null | ||
PD202 | Reserved | null | ||
PD203 | Reserved | null | ||
PD204 | Reserved | null | ||
PD205 | Reserved | null | ||
PD206 | Reserved | null | ||
PD207 | Reserved | null | ||
PD208 | Reserved | null | ||
PD209 | Reserved | null | ||
PD210 | Reserved | null | ||
PD211 | Reserved | null | ||
PD212 | Reserved | null | ||
PD213 | Reserved | null | ||
PD214 | Reserved | null | ||
PD215 | Reserved | null | ||
PD216 | Reserved | null | ||
PD217 | Reserved | null | ||
PD218 | Reserved | null | ||
PD219 | Reserved | null | ||
PD220 | Reserved | null | ||
PD221 | Reserved | null | ||
PD222 | Reserved | null | ||
PD223 | Reserved | null | ||
PD224 | Reserved | null | ||
PD225 | Reserved | null | ||
PD226 | Reserved | null | ||
PD227 | Reserved | null | ||
PD228 | Reserved | null | ||
PD229 | Reserved | null | ||
PD230 | Reserved | 255 | ||
PD231 | Reserved | 65535 | ||
PD232 | Reserved | null | ||
PD233 | Reserved | null | ||
PD234 | Reserved | null | ||
PD235 | Reserved | null | ||
PD236 | Reserved | null | ||
PD237 | Reserved | null | ||
PD238 | Reserved | null | ||
PD239 | Reserved | null | ||
PD240 | Reserved | null | ||
PD241 | Reserved | null | ||
PD242 | Reserved | null | ||
PD243 | Reserved | null | ||
PD244 | Reserved | null | ||
PD245 | Reserved | null | ||
PD246 | Reserved | null | ||
PD247 | Reserved | null | ||
PD248 | Reserved | null | ||
PD249 | Reserved | null | ||
PD250 | Reserved | null |
